So What IS This Gadget?

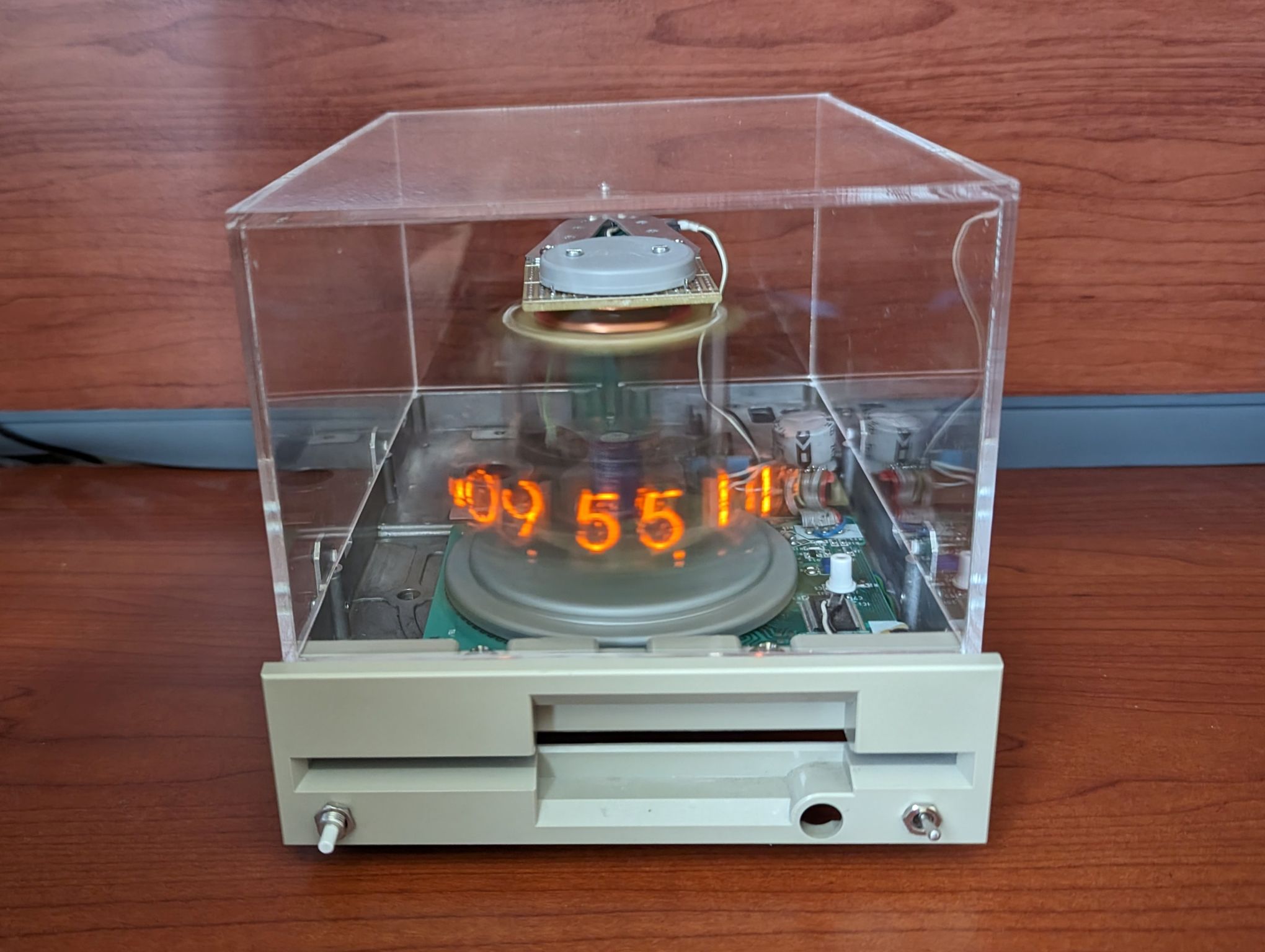

The Nixie Tube Propeller Clock (NTPClock) is a unique timekeeping device that combines the vintage charm of the Nixie tube with the modern display idea utilizing the persistence of vision (a.k.a positive after-images) phenomenon. A single Nixie tube mounted on a spinning "propeller" board displays the time and date along a horizontal circular path, with multiple different scrolling or stationary patterns. The device uses the motor of an ancient 5 ¼ inch floppy disc drive as the source of regulated angular speed for the propeller; the heart of the circuitry is a PIC16F84A microcontroller.

With a later addition, the clock can now also play what is commonly referred to as 8-bit music using a small piezo speaker.

Motivation

The inescapable question is, why anybody would want to build such a thing, and the answer is this: having joined the Nixie-enthusiast NEONIXIE-L Yahoo! Group (now closed and migrated to the neonixie-l Google Group) as one of the first members, I decided to create something novel. Being a devoted clock freak myself, my obvious choice was building another clock. Nixie tube clocks had existed prior to NEONIXIE-L, so if I wanted to make a lasting contribution, I needed to up the ante. Rather quickly the propeller clock design came to mind. Propeller clocks had also existed before [since around the mid-90's], but they all used a column of LEDs as the moving display element. Building the world's first Nixie tube propeller clock was just too great of an opportunity to pass on.

Features

The clock provides a single-button interface, with different functions assigned to different button presses:

Short press: Cycle through the display patterns
Double press: Cycle through the tune options
Long press: Enter Settings Mode and navigate the clock fields

The implemented display patterns are as follows:

Stationary patterns - the digits are displayed in a fixed position in the front and back:

Time & date alternating in front & back side
Time in front, date in back
Date in front, time in back

Scrolling patterns - the digits are displayed in a scrolling (rotating) manner:

Right-scroll (continuous scrolling in anti-clockwise direction)
Left-scroll (continuous scrolling in clockwise direction)
Stand-scroll (quasi-stationary display, for tuning display timing)
MagnetoSpin (rapid anti-clockwise scroll, with slow-down for time & date in the middle)

In the tune department, the options are:

Off: When silence is gold
Chirpie: Chirping sound pattern reflecting the displayed digits
Manic Miner jingle: Hat-tip to the once popular ZX Spectrum game
Jet Set Willy jingle: Hat-tip to the other popular ZX Spectrum game
Woodycock: The well-known beautiful melody by an anonymous composer
Frequency test: Repeated sounding of the A4 (440 Hz), A5 (880 Hz) and A6 (1760 Hz) notes, for 8 seconds each
Frequency sweep: Continuous sweep of all frequencies supported by the sound engine (330 Hz to 77.7 kHz in 256 steps)

The clock also supports the different hour-display modes, selectable via a jumper on the circuit board:

12-hour mode: The jumper is removed (to disambiguate, the decimal points are flashing for PM)
24-hour mode: The jumper is in place

Press

An article about the clock was published in the February 2007 edition of the Circuit Cellar electronics magazine. It gives a detailed account of the development process and technical details of the project, featuring the v2 design prior to the addition of the piezo buzzer and the sound engine.
